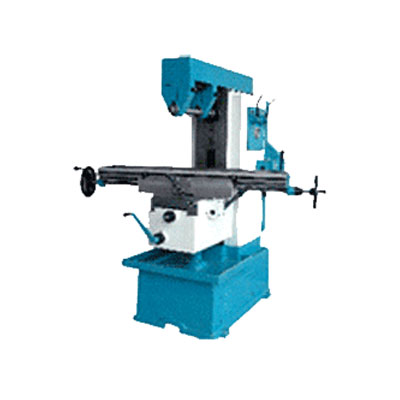

MILLING MACHINE WITH HOBBING ATTACHMENT
TECHNICAL SPECIFICATIONS:
|
Model |
No. 0 |
No. 1 (Medium) |
No. 1 |
No. 1.1/2 |
No. 2 |
No. 3 |
No. 4 |
|
Face of Body |
7" |
8" |
9" |
10" |
11" |
12" |
13" |
|
Surface of Table |
32" x 7" |
36" x 9" |
42: x 10: |
48" x 11" |
52" x 12" |
12" |
13" |
|
No. of T-Slots |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Size of T-Slots |
½" |
½" |
½" |
½" |
½" |
5/8" |
5/8" |
|
Swivel Either Side of Table |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
|
Cross |
6" |
6" |
7" |
8" |
10" |
12" |
13" |
|
Vertical of Travers |
16" |
16" |
18" |
20" |
25" |
28" |
30" |
|
Longitudinal Travers |
19" |
13" |
21" |
25" |
27" |
30" |
32" |
|
Standard Arbour |
1" |
1" |
1" |
1" |
1" |
1- 1/4" |
1-1/2" |
|
Taper of Spindle |
I.S.O. 40 |
I.S.O. 40 |
I.S.O. 40 |
I.S.O. 40 |
I.S.O. 40 |
I.S.O. 40 |
I.S.O. 50 |
|
No. of Spindle Speed |
6 |
6 |
6 |
9 |
9 |
9 |
9 |
|
Range of Spindle Speed |
40 TO 700 |
40 TO 700 |
40 TO 700 |
40 TO 700 |
40 TO 700 |
40 TO 700 |
40 TO 700 |
|
Dia of Spindle in MM |
50 |
70 |
80 |
80 |
90 |
100 |
110 |
|
No. of Longitudinal Feed Table |
2 |
2 |
3 |
3 |
3 |
3 |
3 |
|
H.P |
1 H.P |
1.5 H.P |
2 H.P |
2 H.P |
2 H.P |
3 H.P |
3 H.P |
|
Coolant Pump Capacity |
2 Gallons |
2 Gallons |
2 Gallons |
4 Gallons |
4 Gallons |
4 Gallons |
5 Gallons |
|
Floor Space (Base) |
26" to 17" |
29" to 19 |
36" to 23" |
42" to 25" |
50" to 26 |
53" to 28" |
56" to 30" |
|
Height |
55" |
60" |
62" |
70" |
73" |
76" |
80" |
|
Weight (Approx) |
450 KGS. |
700 Kgs |
950 Kgs |
1300 Kgs |
1950 Kgs |
2400 Kgs |
3000 Kgs. |
